• Direct Airflow Design: Non-ducted configuration delivers powerful, concentrated cooling and heating directly from the ceiling unit
• 18,000 BTU Cooling Power: High-capacity cooling for RVs up to 40 feet in length, even in extreme heat
• 12,000 BTU Heat Pump: Efficient heating down to 40°F for comfortable shoulder-season camping
• Variable Speed Efficiency: Intelligent compressor modulates from 30% to 100% output, reducing energy consumption by up to 30%
• Ultra-Quiet Operation: Whisper-quiet 55 dB sound level ensures peaceful sleep and relaxation
• Eco-Friendly R32 Refrigerant: Advanced refrigerant with 20% better energy efficiency and lower environmental impact
• Compact Low-Profile Design: 27.5" W x 27.5" D x 11.5" H fits standard 14" x 14" roof openings
• Lightweight Construction: 92 lbs for easier installation and reduced roof load
• 115V AC Operation: Standard voltage for simple electrical connection

Why Choose the Furrion® Chill® Cube Non-Ducted RV Air Conditioner?

Not every RV has ductwork, and not every RVer wants the complexity of a ducted system. The Furrion® Chill® Cube Non-Ducted Variable Speed RV Air Conditioner delivers powerful, direct climate control without requiring expensive ductwork installation or modifications. The non-ducted design provides concentrated airflow exactly where you need it, making it ideal for smaller RVs, van conversions, or layouts where you want focused cooling in the main living area. Unlike traditional single-speed units that blast cold air and cycle on and off constantly, the variable-speed compressor continuously adjusts output to maintain your perfect temperature while using up to 30% less energy. The ultra-quiet 55 dB operation means you'll barely notice it running, even at night. With eco-friendly R32 refrigerant and a powerful 12,000 BTU heat pump, you'll enjoy year-round comfort while reducing your carbon footprint and energy costs. The lightweight 92-lb design makes installation easier and puts less stress on your RV roof compared to heavier traditional units.

Compare Furrion® Chill® Cube RV Air Conditioners

Choosing between ducted and non-ducted configurations depends on your RV's existing setup and your airflow preferences. Compare the Furrion® Chill® Cube models to find the perfect match for your needs.

Pro Tip: Non-ducted units are perfect for RVs without existing ductwork, van conversions, or when you want powerful, direct airflow in your main living space. Ducted systems provide more even temperature distribution across multiple rooms.

Lippert-Published Performance Details

Lippert has now published additional Chill Cube 18K details that help explain why this unit is different from a standard RV rooftop AC. The key updates are stronger efficiency language, clearer high-heat performance claims, and more detail on the variable-speed compressor behavior.

• Extreme-heat cooling: Lippert says the Chill Cube 18K is built to keep cooling in outside temperatures over 105°F.
• Lower power draw: Lippert describes the system as requiring up to 40% less power than a typical RV air conditioner while still delivering over one ton of cooling.
• No aftermarket soft start needed in most installs: the variable-speed compressor ramps up gradually instead of pulling a hard startup surge, giving better generator flexibility and helping avoid nuisance breaker trips.
• Continuous, quieter operation: instead of loud on/off cycling, the compressor changes speed based on cooling demand for steadier temperature control and lower operating noise.
• Better humidity control: because the compressor can keep running at lower speeds, it continues pulling clammy air out instead of short-cycling.

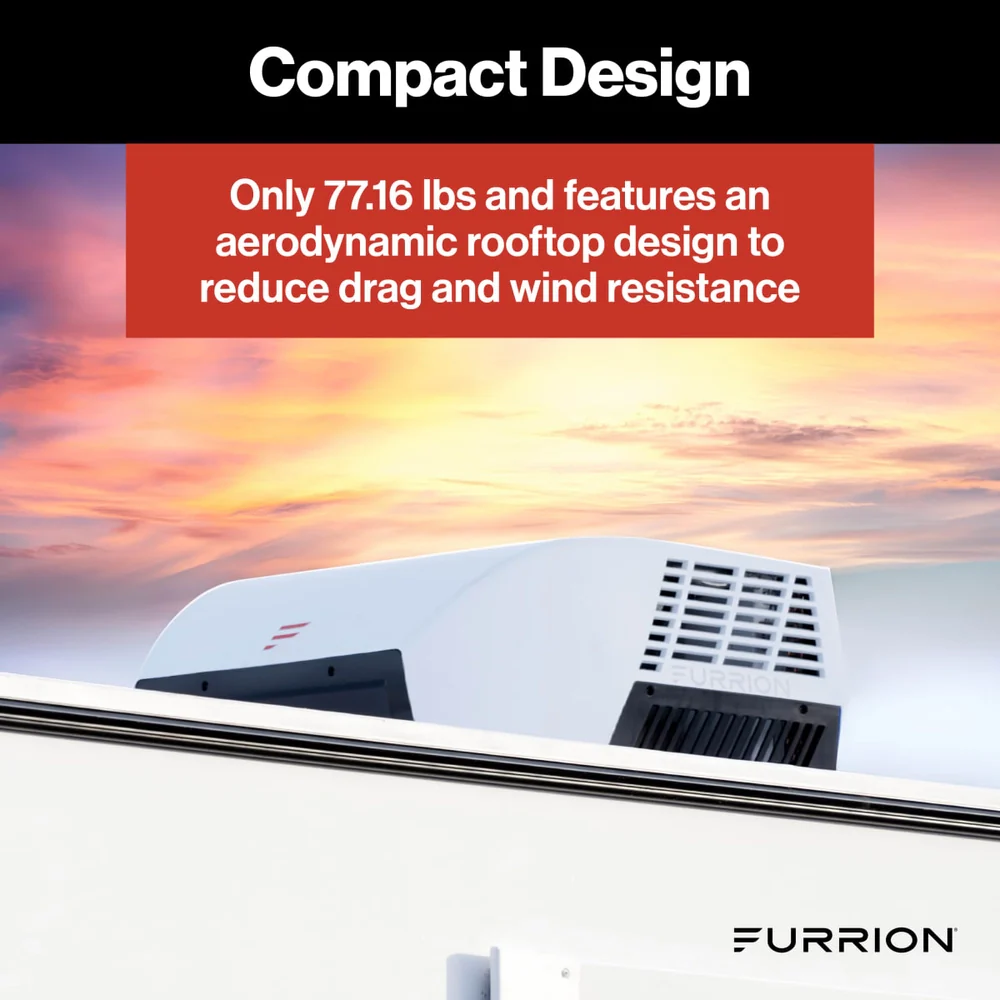

• Road-ready roof profile: Lippert calls out the aerodynamic rooftop design, reduced wind drag, and extra roof space for solar panels or pop-top layouts.
• Non-ducted airflow: Lippert highlights the low-profile ADB with an industry-first oscillating vent that projects air forward for wider direct airflow.

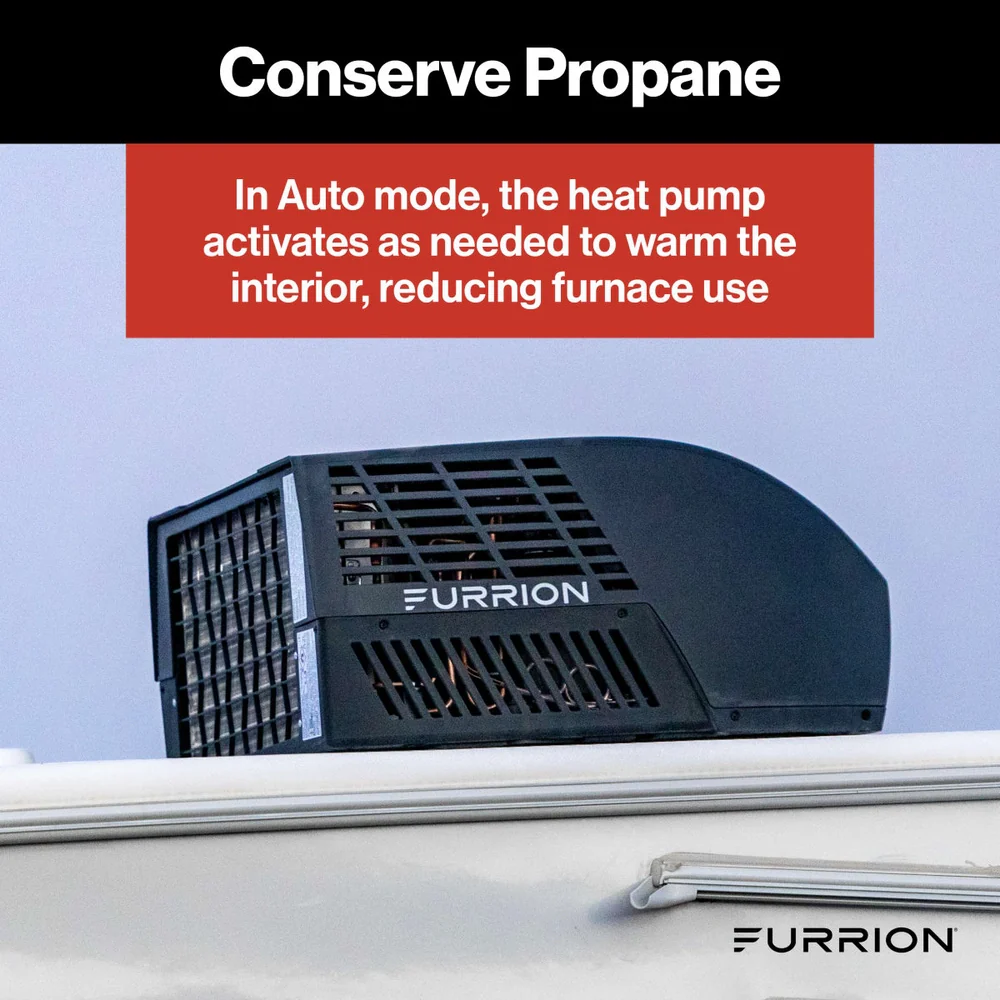

• Heat pump comfort: the built-in heat pump can reduce furnace use and, in Auto mode, activate when the RV interior drops below the set temperature.

R32 refrigerant note: Lippert notes that R410A equipment may be replaced with R32-designed components, but R32 refrigerant cannot be used in R410A-based air conditioners. Always match replacement components to the refrigerant type listed on the RV air-conditioning equipment.

Technical Specifications

• Part Number: 2025008214
• Cooling Capacity: 18,000 BTU/h
• Heating Capacity: 12,000 BTU/h (Heat Pump)
• Compressor Type: Variable Speed (30% to 100% modulation)
• Refrigerant: R32 (Eco-friendly, low GWP)
• Voltage: 115V AC, 60Hz
• Sound Level: 55 dB (Ultra-quiet operation)
• Dimensions: 29-1/2" x 29" x 14-1/2" (Lippert published roof-unit dimensions)
• Weight: 77.16 lbs (Lippert listed item weight; Shopify shipping weight may differ)
• Roof Opening Required: Standard 14" x 14" opening
• Airflow Configuration: Non-Ducted (Direct ceiling airflow)
• Color: White (UV-resistant finish)
• RV Size Capacity: Up to 40 feet in length
• Heat Pump Operating Range: Down to 40°F ambient temperature
• Installation: Rooftop mount with standard gasket seal
• Warranty: Manufacturer's warranty included (see documentation)

What's Included

• Furrion® Chill® Cube Variable Speed Non-Ducted RV Rooftop Air Conditioner Unit
• Installation Hardware Kit (mounting bolts, gasket, sealant)
• Owner's Manual with Installation Instructions
• Warranty Registration Card
• Manufacturer's Limited Warranty Coverage

Compatible Accessories & Upgrades

Enhance your non-ducted RV air conditioning system with these compatible accessories and complementary products:

• Furrion Chill Multi-Zone Wall Thermostat - Advanced 3-speed control for precise temperature management
• Furrion Thermostat Adapter Kit - Compatibility adapter for various thermostat models

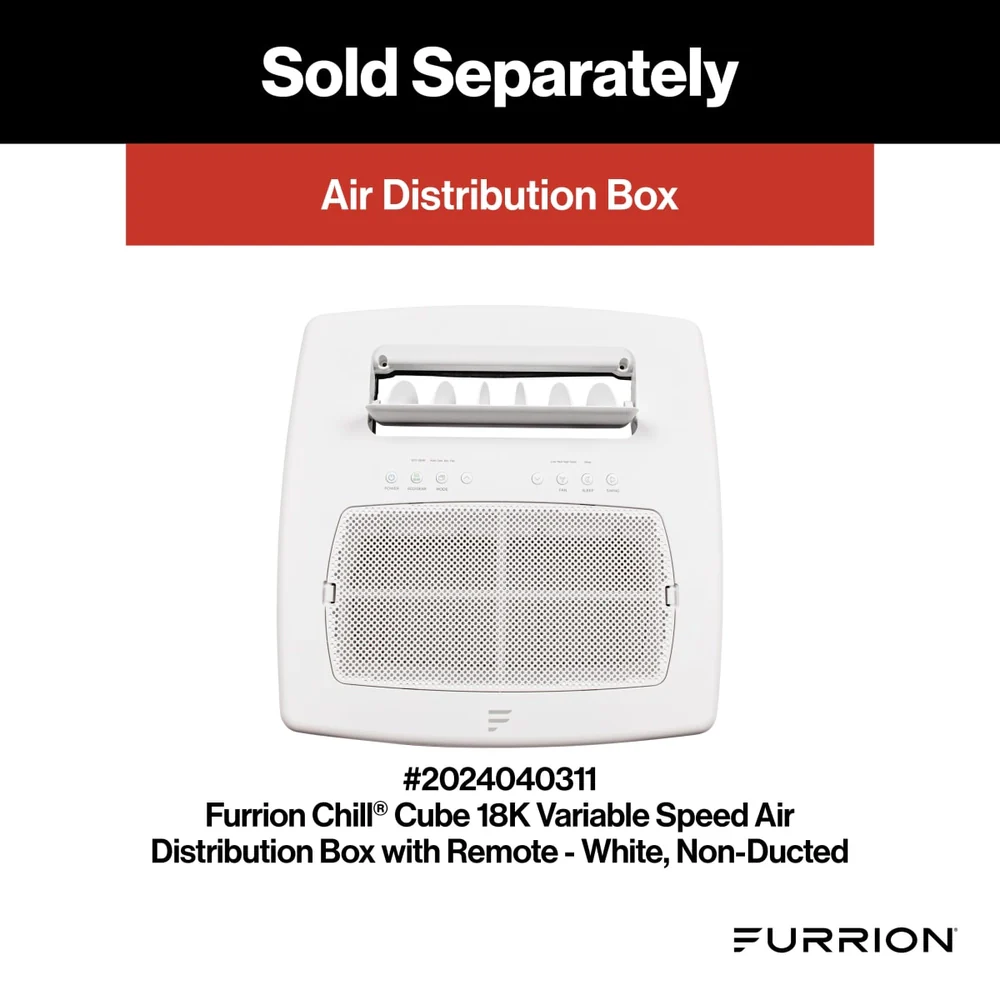

• Dometic Universal Air Distribution Box - Optional airflow distribution enhancement for non-ducted systems
• Black Non-Ducted Version (#2025008217) - Same performance in black finish
• Ducted Version (#2025008216) - For RVs with existing ductwork

Frequently Asked Questions

How do I install a non-ducted RV air conditioner?

Installation involves removing your existing AC unit (if applicable), ensuring the roof opening is 14" x 14", applying fresh sealant and gasket material, mounting the Chill Cube unit with the provided hardware, and connecting to your RV's 115V electrical system and thermostat wiring. Non-ducted installation is simpler than ducted systems since there's no ductwork to connect. Professional installation is recommended for proper sealing and electrical connections to prevent leaks and ensure safe operation.

What's the difference between non-ducted and ducted RV air conditioners?

Non-ducted air conditioners (like this model #2025008214) deliver direct, powerful airflow from the ceiling unit into your main living space without requiring ductwork. This provides concentrated cooling and heating exactly where you need it most. Ducted systems distribute air through vents throughout your RV for more even temperature control across multiple rooms. Non-ducted units are ideal for RVs without existing ductwork, simpler installations, van conversions, or when you prefer focused airflow in one primary area.

Is this air conditioner powerful enough for my RV?

The Furrion Chill Cube Non-Ducted model provides 18,000 BTU cooling capacity, making it suitable for RVs up to 40 feet in length. The non-ducted design delivers concentrated airflow, which is particularly effective for open-concept RV layouts or when you want powerful cooling in your main living area. For larger RVs or those with multiple separate rooms, you may want to consider a ducted system or multiple AC units for optimal comfort.

How much quieter is the variable speed compressor compared to traditional RV AC units?

The Furrion Chill Cube operates at an ultra-quiet 55 dB, which is significantly quieter than traditional single-speed RV air conditioners that typically run at 65-75 dB. The variable-speed technology also eliminates the jarring on-off cycling noise of conventional units. Instead of blasting at full power and shutting off repeatedly, the Chill Cube runs continuously at lower speeds to maintain temperature, creating a peaceful environment for sleeping and relaxation.

Can I add an air distribution box to a non-ducted unit?

Yes! While this unit is designed for direct airflow, you can add an optional air distribution box to help direct and spread the airflow more evenly throughout your RV's interior. The Dometic Universal Air Distribution Box is compatible with non-ducted applications and can help improve air circulation without requiring full ductwork installation. This is a great middle-ground solution for better airflow distribution.

How energy-efficient is the R32 refrigerant compared to older refrigerants?

R32 refrigerant provides approximately 20% better energy efficiency compared to older R410A refrigerant used in traditional RV air conditioners. Combined with the variable-speed compressor technology, you can expect up to 30% total energy savings compared to conventional single-speed units. R32 also has a significantly lower global warming potential (GWP), making it more environmentally friendly while delivering superior cooling and heating performance.
